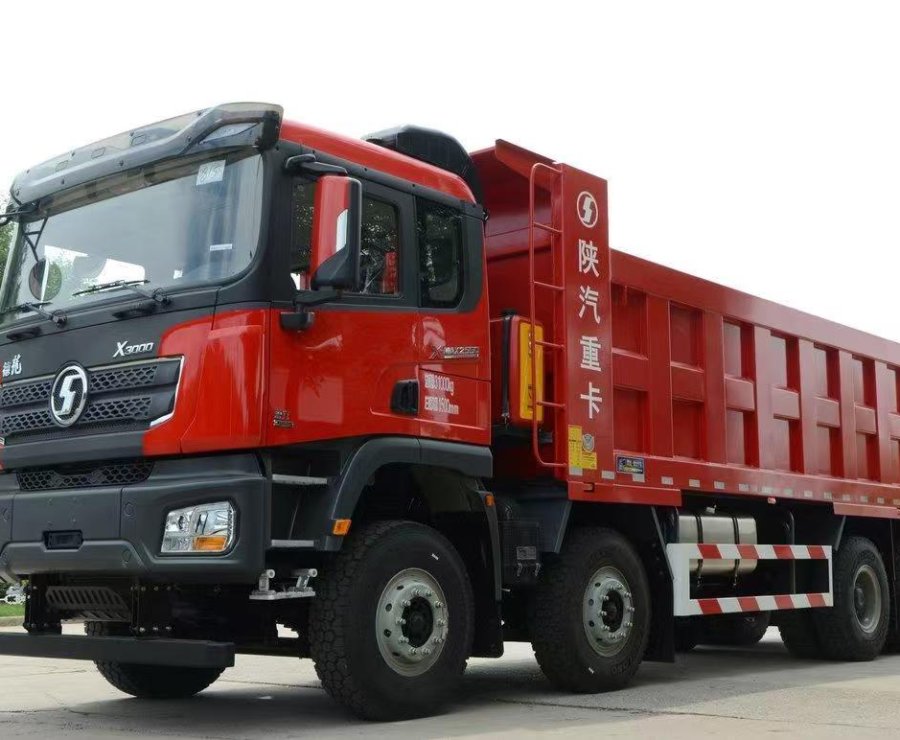

SHACMAN X3000 8×4 Dump Truck

Product Description:

The SHACMAN X3000 8×4 stands out in the global heavy-duty dump truck market with exceptional cost-effectiveness, owing to its military-grade chassis resilience, the proven reliability of the Weichai powertrain, and highly customizable adaptability.

It is particularly suited for extreme heavy-load applications such as mining, large-scale civil engineering projects, and port logistics.

inquiry now add to cart

Specifications

Front axle	9.5T (MAN)
Rear axle	16T (MAN)
Checkpoint	12JSDX220TA-B+KOM QH50, mechanical, 12 + 2
Gear ratio	5.262
Clutch	Friction, dry, single-disc, with diaphragm spring
Drive	Hydraulic with pneumatic booster
Blocking	Two-stage retarder with interaxle and interwheel differential lock
Front suspension	Dependent, on longitudinally located semi-elliptical springs, with telescopic hydraulic shock absorbers
Rear suspension	Spring, dependent, with reaction rods, wheel reducers with interwheel and interaxle differential
Service brake system	Pneumatic dual-circuit, separate, with drum-type brake mechanism
Parking brake system	Spring, energy-accumulating
Auxiliary braking system	Retarder/Retarder FHB400
ABS	WABCO, six-channel
Tires	Triangle, 315/80R22.5, radial, metal-cord
Spare wheels	315/80R22.5 (1 pc)
Front track	2,030 mm
Rear track	1,860 mm
Minimum ground clearance	300 mm
Minimum turning radius	≤24 m
Maximum gradeability	≤28°
Maximum speed	100 km/h
Steering gear	Rack and pinion, with hydraulic booster ZF8098 / Shashi Jiulong
Cruise control	Eat
Camera Review	360° (6 cameras, 10 inch monitor)
Fuel tank	Aluminum, 500 l
Average fuel consumption per 100 km	35 l
Cabin	X5000 (restyling of X3000)
Cabin suspension	Hydraulic, 4-point
Sleeping places	1
Heating system	Reinforced
Battery	180 Ah
Equipment	40 kg of urea, balance beam on the rear axle, rear protection, fire extinguisher (2 kg), anti-roll device, fiberglass bumper, towbar, central locking, heated mirrors, electric windows

Inquiry Now

Product Name:SHACMAN X3000 8×4 Dump Truck
