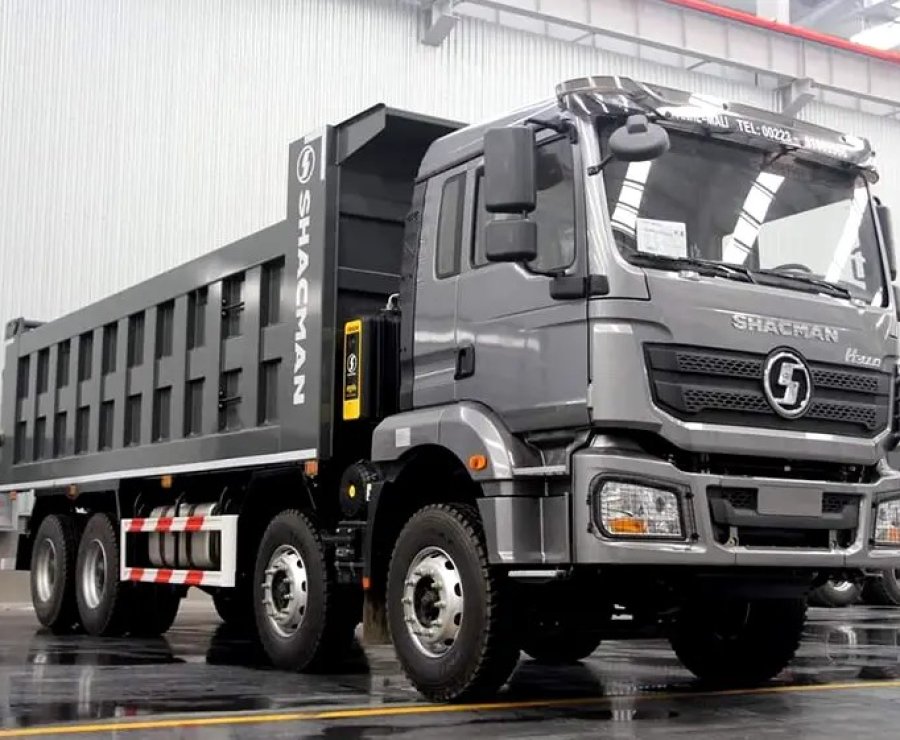

SHACMAN H3000 8×4 Dump Truck

Product Description:

The SHACMAN H3000 8×4 Dump Truck combines powerful performance, durability, and operator comfort, making it a competitive choice for heavy-duty dumping tasks globally.

inquiry now add to cart

Specifications

Cab	H3000 Standard Cab,Air Conditioner,Singlebed
Dimension(Lx W xH)(mm)	10185×2500×3450mm
GVW (kg)	≤65000kg
Kerb mass(kg)	16300kg
Approach / departure angel	27/18
Front/rear suspension(mm)	1485/1875
Max.gradeability(%)	28
Enginebrand	Weichai Engine
Engine model	WP10.380E22,380hp
Rated speed(rpm)	2200rpm
Emission Standard	E-II
Fuel type	Diesel
Displacement(L)	9.726L
Driving type	8×4
Axle number	4
Wheel base(mm)	1800+3575+1400mm
Clutch	φ430diaphragm spring
Gearbox	FAST 10JSD180,10 Forward&2Reverse,Manual
PTO	QH50
Front axle	9.5T MAN 2×9500kg
Rear axle	16TMAN 2×16000kg
Steering	ZFtechnology left-hand drive(LHD)
Type	13R22.5,12+1pc
Tank capacity(L)	400L
Max. speed (km/h)	80km/h
Color	Optional
Cargo box size(mm)	7400×2300×1500mmbottom8mm,side4mm
Lifting style	φ200 hydraulic frontlifting cylinder
