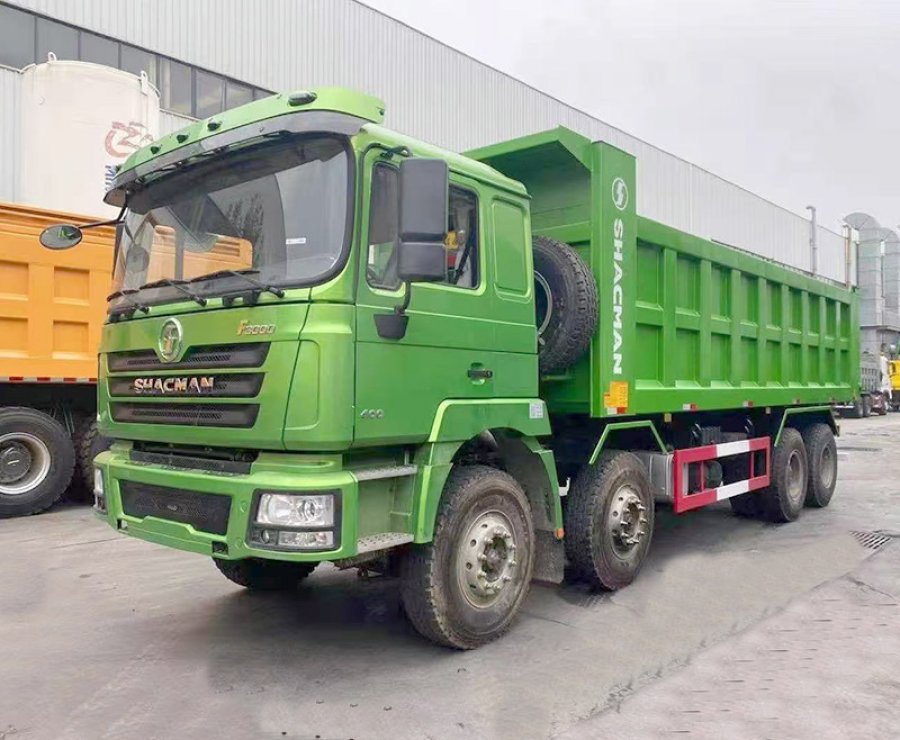

SHACMAN F3000 8×4 Dump Truck

Wheel base(mm)

1800+3575+1400

Overall dimension(mm)

10150X2490X3540

Curb weight(Kg)

14977

Load capacity(Kg)

50000

Cabin

Flat roof,one and half rows,luxury configuration,

2,3 passengers allowable,with single bunker,A/C

Engine

Model

WP12.375E40

Max.output (kw/HP)

276/375

Max.torque (N•m)

1800@1000~1400rpm

Displacement (ml)

11596

Emission standard

Euro IV

Description

In-line, 6 cylinders,water cooled,4 strokes,turbo charged,inter-cooled,electric control,high pressure,

common rail,diesel engine

Gear box

12JSD180T,manual,12 forward＆2 reverse gears

Driving axle

Twin reduction with big torque ratio 5.262,

load capacity 18000Kg

Front axle

Steering axle,load capacity 6500+6500Kg

Frame

940/865/317x8+8mm

Quantity of leaf spring

14/13/12

Clutch

Diaphragm clutch,pull-type Ø430

Inner trimming

Standard configuration

Air suspension seat

Seat heater

Lumbar support to the driver

Adjustable steering wheel

Electrical system

Standard configuration

CAN bus intellectual electronic control system

New battery box

Start/stop device under the vehicle

Safety

Standard

configuration

Three points safety belt

Automatic clearance adjustment arm,tachometer

Service brake

Dual circuit compressed air brake

Parking brake

Spring energy, compressed air operating on rear wheels

ABS

Provided

Comfortable accessories

Cab four points full floating suspension

Front and rear coil spring

Standard configuration

Cab anti-rolling stabilizing device

Hand accelerator

Electric window

Provided

Chassis

Fuel tank

400L,aluminum fuel tank

Standard configuration

Big tool box

Reinforced rim (with HQ mark)

Three in one lock (Ignition switch, door and fuel tank)

Type specification

12.00R20

Number of tyres

12+1

Max.vehicle speed(km/h)

80

Grade ability(%)

35

Box dimension(mm)

7600X2300X1100
