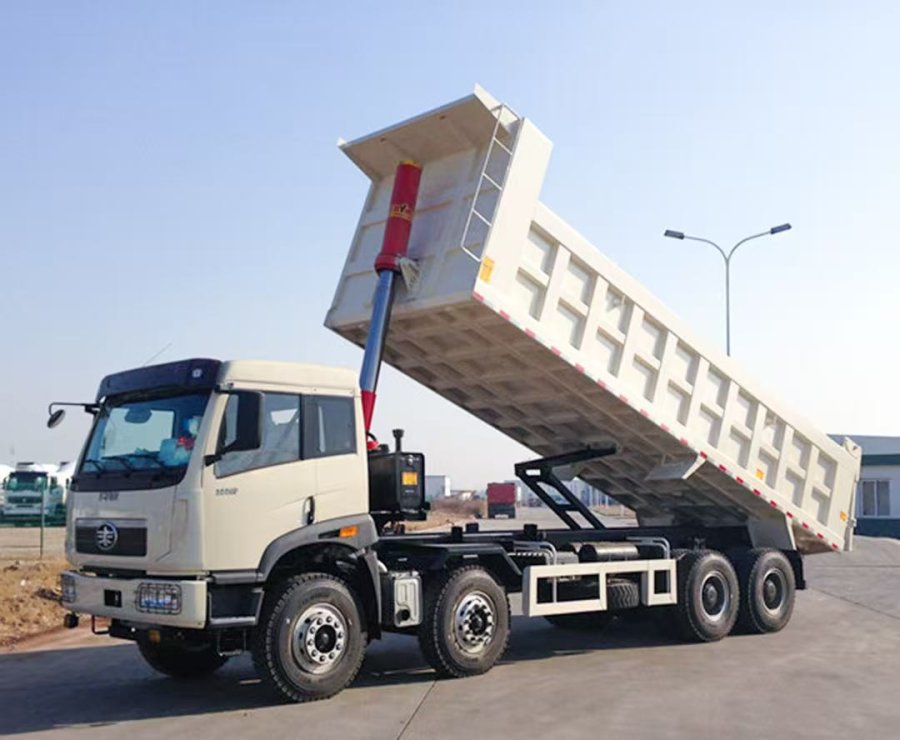

FAW New J5P 8×4 Dump Truck

Product Description:

The FAW New J5P 8×4 Dump Truck is a classic model born for extreme heavy-duty applications. It perfectly inherits the robust and durable DNA of the J5P series and elevates its load-bearing capacity to new heights by adding an additional axle. If you are looking not just for an ordinary dump truck, but a "money-making machine" and "workhorse of engineering" capable of continuously handling ultra-high-intensity transport tasks, then the J5P 8×4 is undoubtedly a highly competitive choice in the market.

inquiry now add to cart

Specifications

Drive System	8×4 Left Hand Drive
Engine	Weichai engine WP10.340E32, 9.726L, Euro III
Rated power	250KW/340HP/2200rpm
Max. torque	1250N.m
Gearbox	FAST 12JSD160T; 12 forward speeds, 2 reverse speed
Overall dimensions (mm)	1020825003600
Dump body (mm)	7600×2300×1200
Thickness (mm)	Bottom 8, side 6
Hydraulic lifting system	Front lifting style
Wheel base (mm)	1860+3960+1350
Frame	32090(8+8)
Front axle	A1H
Rear Axle	300 casting axle with ratio: 5.921
Clutch	Φ 430mm Diaphragm type
Tire	12.00R2018
Fuel Tank	400L
The Others	All steel dash, air seat, WABCO valves for the whole vehicle, maintenance free battery, bipolar air filter, tank armor

Inquiry Now

Product Name:FAW New J5P 8×4 Dump Truck
