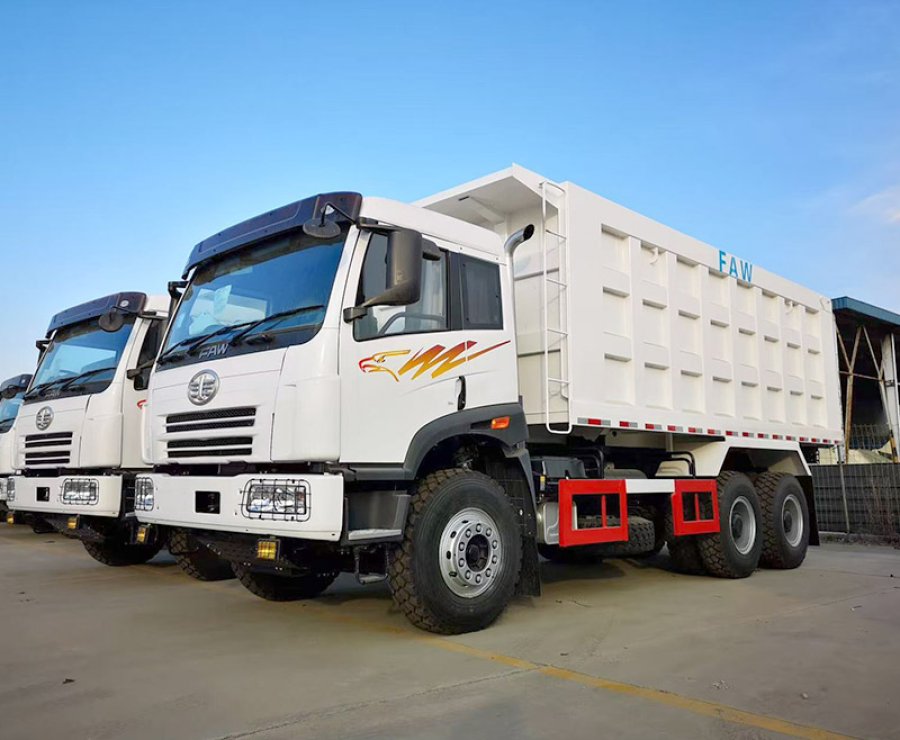

FAW New J5P 6×4 Dump Truck

Product Description:

The FAW New J5P 6×4 Dump Truck is a formidable and purpose-built machine for the mining and heavy construction industries. It prioritizes durability, payload capacity, and powerful performance over luxury. If your operation requires a robust and cost-effective hauler for the most demanding environments, the J5P is certainly a model worth serious consideration.

inquiry now add to cart

Specifications

Drive System	6×4
Cabin	NEW J5P high floor flat roof cab fully floating
Engine	Model: WP10.340E32, EURO2
Engine	Power: 340HP; Torque: 1250N.m; Displacement:9.726L
Gearbox	Model: FAST 9JSD135T Manual, 9 forward speeds, 1 reverse speed. With PTO
Clutch	Ф430mm
Dump box dimension (mm)	5600x2300x1500mm 19.32m3
Thickness of dump box (mm)	Bottom 8mm, side 6mm
Loading capacity (kg)	41000KG
Lifting system	Front tipping
Wheel base(mm)	3700+1350mm
Front axle	D643, HAITONG axle
Rear axle	300 Cast wheel reduction axle ; Speed ratio: 5.921
Frame	32090(8+8),
Tire	12.00R2018
Spring suspension	Leaf spring;10/13
Fuel tank (L)	300L
Overall dimensions(mm)	8600x2500x3800mm
Others	Air conditioner,reed pipe, WABCO valves,With engine guard,Camel brand 150Ah battery
