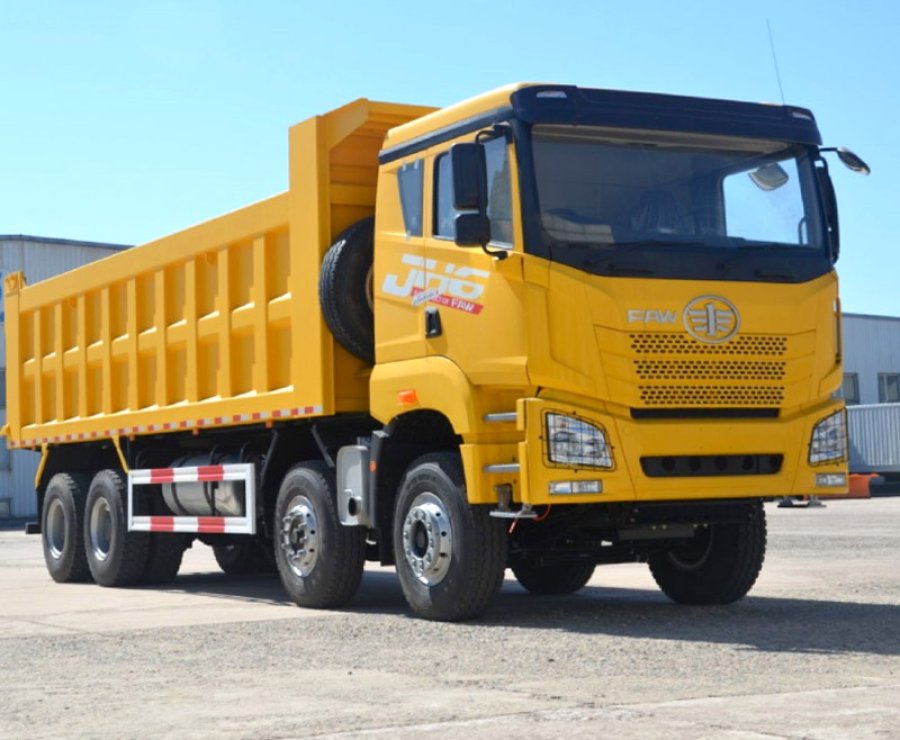

FAW JH6 8×4 Dump Truck

Product Description:

FAW JH6 8x4 dump truck represents a new generation of widely-used heavy-duty tipper manufactured by FAW Jiefang's Qingdao facility. The vehicle offers two engine options: FAWDE engines with 390hp and 420hp power outputs, and Weichai Power engines providing 380hp, 420hp, and 460hp variants. To accommodate global market requirements, the model supports multiple emission standards including Euro II and Euro V specifications. Both left-hand drive and right-hand drive configurations are available to suit different regional transportation regulations.

The vehicle achieves a mean distance between failures of 100,000 kilometers and demonstrates 6-8% lower fuel consumption compared to competing products, establishing itself as the benchmark model in China's premium engineering truck market.

inquiry now add to cart

Specifications

Name	JH6 8×4 dump truck
Color	Multiple colors available
Drive Type	8×4
Driving Position	Right and left-hand drive available
Emission Standards	Euro 2 (E2), Euro 3 (E3), Euro 5 (E5)
Engine	Xichai CA6DM2-42, Weichai WP10.380E32, Weichai WP12.430E50, Xichai CA6DM2-42, Xichai CA6DM2-42E5
Engine Horsepower	340PS, 370PS, 380PS, 390PS, 420PS, 460PS, 500PS
Clutch Type	Ø430
Transmission	FAW CA10TA190F, FAW CA12TA210M, Shaanxi Gear 10JSD200B, Shaanxi Gear 12JSD160T
Front Axle	2020 front axle, 2055 front axle, A1H-Haitong
Rear Axle	300 wheel reducer, 300 cast wheel reducer, 457 upgraded stamped and welded axle
Rear Axle Ratio	4.26, 4.44, 4.875, 5.263, 5.286, 5.921
Frame	30080(8+8+5), 300 ×80×(8+8)
Cab Configuration	JH6 raised-floor, high-top, fully floating cab
Tires	12.00R20 18-ply, 12.00R24 20-ply, 13R22.5-20-ply
Wheelbase	1900+3800+1350, 1900+3400+1850, 1900+4200+1350
Cab	7800×2300×800
Load Capacity	18 tons
Other Features	180AH battery, imported clutch, 400L steel fuel tank, WABC Clutch booster, internal spline power take-off and control mechanism, WABCO valves throughout, front axle anti-roll bar, electric lift, electric mirrors, electric doors and windows, automatic air conditioning, leaf springs (11/13 front, 13 rear), 4 main springs front and rear, reinforced rear spring (28mm), Camel battery, oil filter, double I-bar rear balancing suspension, 4U bolts, 8.8 steel rims, small bumper, front and rear light guards, engineering tires, long-term maintenance coarse filter, overseas vehicle

Inquiry Now

Product Name:FAW JH6 8×4 Dump Truck
