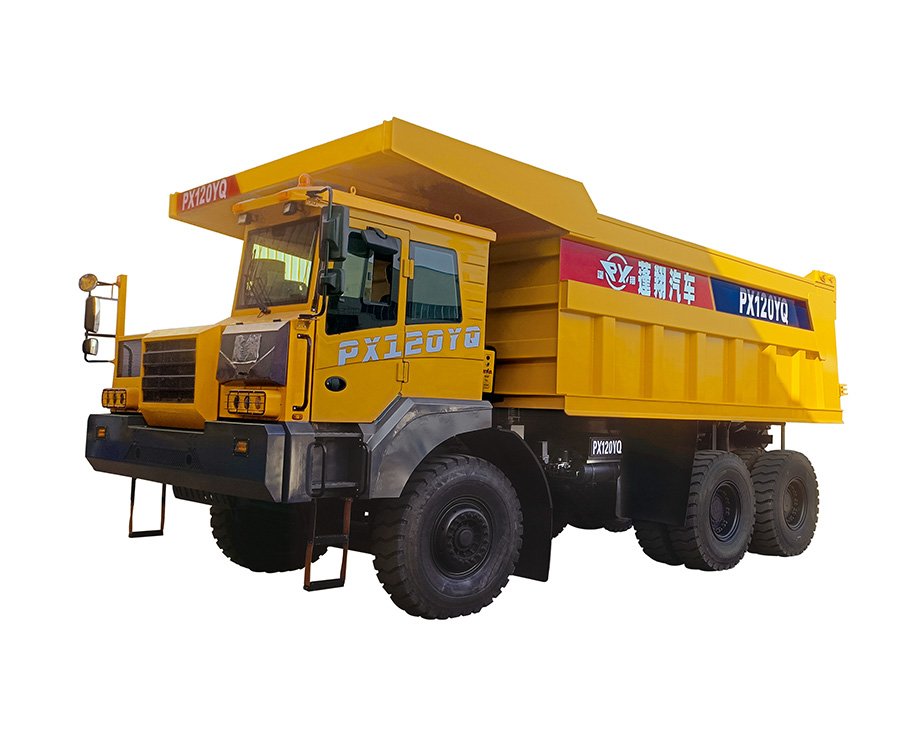

PENGXIANG PX120 Mining Truck

Product Description:

◆ 16Lengine 610-770HP, dual emissions lll & Disc brake axle, high safety factor

◆ Front drum and rear disc braking system for the 80T class

◆ Blade ventilation disc and wear-resisting friction plate

◆ Reliable pneumatic hydraulic suspension

◆ Lends high reliability oil gas suspension system

◆ Full hydraulic steering system with low fault rate

◆ High strength box with large volume and loading capacity

Specifications

Type:	PX120YQ
Driving Cab:	Reversible wide-body offset cab
Engine Type/ Horsepower:	YUCHAI 770HP YCK16775-T300
Transmission Type:	FAST 8DS260
Steering Engine:	EATON Full hydraulic power steering engine
Front/rear axle:	PX30Tcasting steel front axle/PX 45T casting dual reduction middle/rear axle
Frame:	Welded Semi-rigid cube type frame 500*140
Inner diameter size of cargo box(mm):	620038002100
Description:	NM400 bottom plate 16mm; Q355 side plate 12mm, Hyward 202 hydraulic system, mining square box
Tyre:	16.00R25 mining tire
Front/rear suspension:	Oil-gas spring
Leaf spring for front, middle, rear axle:	Oil-gas spring
Breaking system:	SORL system,Front / mid / rear axle drum brake
Others:	Oil-bath filter, exhaust braking,heater for base plate,Stone remover,Chassis protection,Relay waterproof protection, Rear view mirror reinforcement,LED Sidelight and taillight,Electronic radiator,Backup camera, electronic air conditioning
Curb Weight(kg):	40000
Rated load(kg):	80000
Rated total weight(kg):	120000
Overall Dimension(mm):	970039804230
Max speed(km/h):	42
Min ground clearance(mm):	435
Min turning radius(m):	≤12
Max gradeability(%):	30
Axle base(mm):	4050+1900
Wheel span (front /rear)(mm):	Front3297, Rear 3094
Oil tank Capacity(L):	600L Steel oil tank
Body Capacity:	Flat: 50m³ / Stack: 60m³
