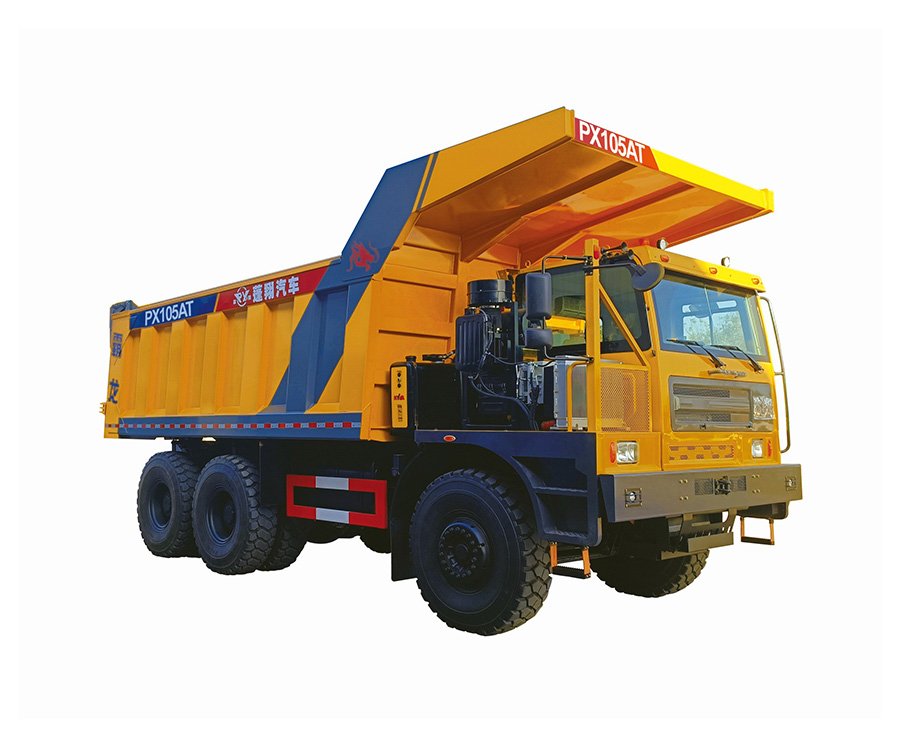

PENGXIANG PX105 Mining Truck

Product Description:

◆ Front hydro-pneumatic suspension

◆ Welded rigid frame

◆ Eaton full hydraulic steering,

◆ PX 25T front axle + PX 40T middle and rear axle

◆ Yuchai 520HP engine

◆ Fast 8DS260 manual transmission/Allison 4800 optional

◆ Hyva hoisting system

Specifications

Type:	PX105MTYQ
Driving Cab:	Reversible wide-body offset cab （Left hand）
Engine Type/ Horsepower:	YuChai YC6K520-GT30 E3/潍柴530马力WP13G530E310
Transmission Type:	FAST 8DS260
Steering Engine:	EATON Full hydraulic power steering engine
Front/rear axle:	PX25Tcasting steel front axle/PX 40T casting dual reduction middle/rear axle
Frame:	Welded Semi-rigid cube type frame 480*140
Inner dimension of body(mm):	640034001750
Description:	Q355 Bottom board 16mm side board 12mm,Front hoisting,Cylinder Hyva202 ,Mining cargo body;
Tyre:	16.00R25 mining tyre
Front/rear suspension:	Whole welded equalizing suspension, reinforced removable equalizing shaft
Leaf spring for front, middle, rear axle:	Front: Oil-gas spring Rear:1202718
Breaking system:	SORL system,Front / mid / rear axle drum brake
Others:	Oil-bath filter, exhaust braking,heater for base plate,Stone remover,Chassis protection,Relay waterproof protection, Rear view mirror reinforcement,LED Sidelight and taillight,backup camera
Curb Weight(kg):	35000
Rated load(kg):	70000
Rated total weight(kg):	105000
Overall Dimension(mm):	9600×3680×4300
Max speed(km/h):	40
Min ground clearance(mm):	435
Min turning radius(m):	≤12
Max gradeability(%):	35
Axle base(mm):	4000+1690
Wheel span (front /rear)(mm):	Front2792, Rear 2606
Oil tank Capacity(L):	600L Steel oil tank
Body Capacity:	40m³
