JMC Carrying Plus 4×2 Dump Truck | Reliable Light Duty Tipper

JMC T822 Single Cab Dump Truck

Product Description:

Brand: JMC

Drive Type: 4×2

Wheelbase: 3360 mm

Engine: JMC JX493 diesel, Euro II

Horsepower: 68kw (configurable)

Transmission: 5-speed manual

Cab Type: Single cab (2 seats)

Tires: 7.00R16 (6+1)

Loading Capacity: 3 tons (configurable)

Applications: Construction site hauling, municipal maintenance, agricultural transport, landscaping, road cleaning, waste management

Fully Customizable – Dump box dimensions, LHD/RHD, and other modifications can be tailored to your local market requirements. Contact us for a personalized quotation!

inquiry now add to cart

Product Details

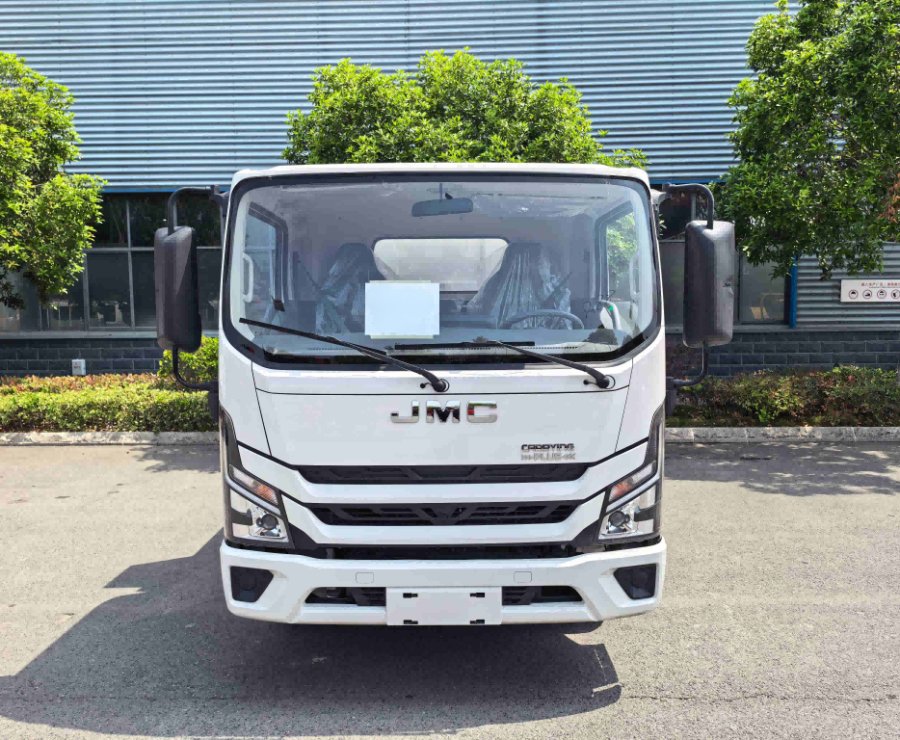

JMC 4×2 Single Cab Dump Truck | 3360mm Wheelbase | Euro II Engine

The JMC Single Cab Dump Truck is a compact and powerful 4×2 tipper built for efficient material handling in construction, municipal maintenance, farming, and landscaping projects. Backed by JMC (Jiangling Motors Corporation) — a leading Chinese commercial vehicle manufacturer with exports to over 70 countries — this model combines proven durability with excellent value.

Core Specifications:

Reliable Euro II Diesel Engine – Powered by the JMC JX493 series turbo diesel engine (approx. 68kW, Euro II emission standard). Designed with simple mechanical structure, low maintenance cost, and strong adaptability to lower-grade fuel — ideal for regions where fuel quality varies and repair facilities are limited.

Optimized 3360mm Wheelbase – Provides an excellent balance between maneuverability and load stability. Long enough for a 3.6m dump box body, yet agile enough to navigate narrow construction alleys, rural roads, and urban job sites.

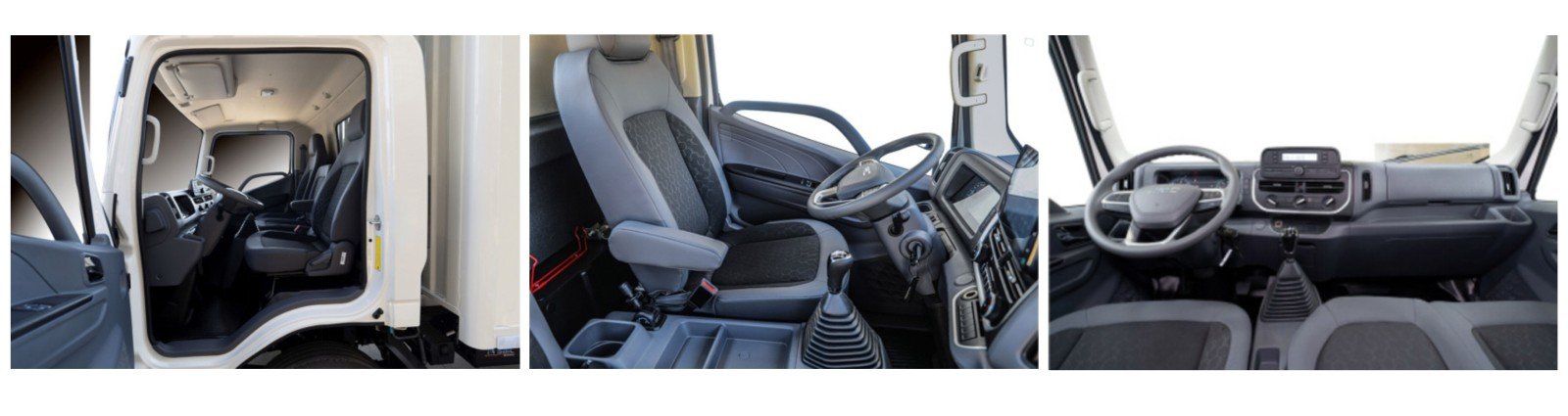

Single Cab Design – 2-seat layout, maximizing cargo body length for bulk materials. The 1880mm medium-width cab offers comfortable driver space with A/C, radio+MP3+USB, adjustable steering wheel, and front fog lamps.

Specifications

Model		All New Carrying Plus
Cabin type		SC/DC
Emissions		E2
Dimension	Wheelbase(mm)	3360
	Cabin width(mm)	1890
	Overall Dimension Cargo body LWH(mm)	SC: 599020802425 DC: 599020802435
	Cargo size L*H(mm)	SC: 42002100440 DC: 32002100440
Powertrain	Engine	JX493
	Displacement(cc)	2771
	Max.Output(kw)/Rpm	68/3600
	Max.Torque(Nm)/Rpm	220/1800-2200
	Gearbox Type	5MT
	Fuel Tank Capacity (L)	105
	Rear axle speed ratio	6.142
Brake&Tire	Brake type	Hydraulic
	Tire type	Dual Rear Tires
	Tire size	7.0R16 10PR
Weight	Kerb weight(kg)	2420/2495
Weight	GVW(kg)	5495
Safety	ABS	●
	Exhaust Brake	●
	Power Steering	●
	Sound alert for handbrake not released	●
	Reminder of unfastened seat belt for driver	●
	LED daytime running light	/
Comfort	Infotainment System(Bluetooth music / Bluetooth phone / USB music)	●
	Multifunction steering wheel	●
	Air conditioner	●
	Central locking(manual)	●
	Remote key	●
	Power windows	●
	One-touch window lift--driver	●
	Remote key control glass one-touch lift	●
	Driver armrest	●
	Headlight delay off	●
	Driver overhead storage box	●
	USB charging port	●
	Overhead storage box mounted USB port	●
	12V Socket/ Power Port DC 12V Outlet	●
	Speed-sensitive automatic door locking	/
