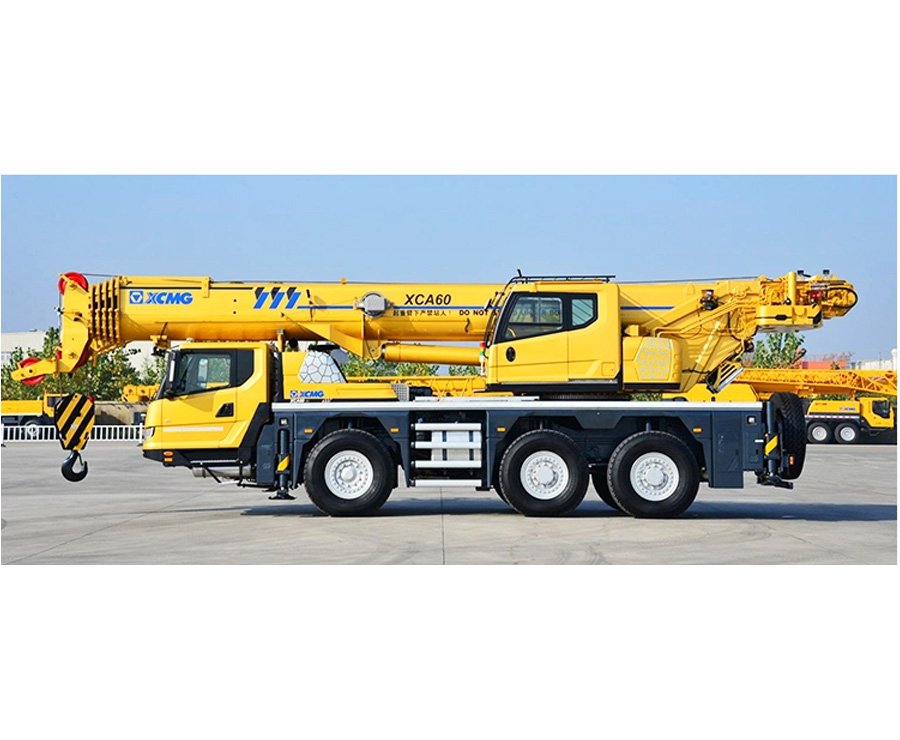

XCMG XCA60 All Terrain Crane

Product Description:

The world's first hybrid all terrain crane, with zero emission in lifting operation. This new energy-powered crane has a maximum load capacity of 60 tons and an arm length of 48 meters. Its performance in terms of working ability, driving performance, and fuel economy has reached new heights.
The XCA60EV achieves zero-emission pure electric operation, with 400V AC power enabling plug-and-play functionality. The 170KW motor enhances the power charging combination, covering all working conditions. In terms of vehicle operation, the XCA60EV is driven by both a fuel engine and an electric motor, with a power output of 400KW. Under different driving conditions, the electric motor intervenes promptly, and the torque is intelligently distributed, ensuring that the engine remains within the optimal economic fuel consumption range.

Specifications

Item			Unit	Parameter
Outline Dimensions	Overall length		mm	11880
	Overall width		mm	2550
	Overall height		mm	3755
	Wheel base	1st and 2nd Axles	mm	2950
		2nd and 3rd Axles	mm	1650
	Track		mm	2150
Weight	Dead weight in travel configuration		kg	36000
	Axle load	1st axle	kg	12000
		2nd axle	kg	12000
		3rd axle	kg	12000
Power	Rated power of engine		kW/(r/min)	280/1900	268/1900
Travel	Travel speed	Max. travel speed	km/h	85
		Min. stable travel speed	km/h	3
	Min. turning diameter		m	14.2
	Min. ground clearance		mm	330
	Approach angle		°	19
	Departure angle		°	21
	Braking distance (at 30 km/h )		m	≤10
	Max. grade ability		%	65
	Oil consumption per 100 km		L	55
