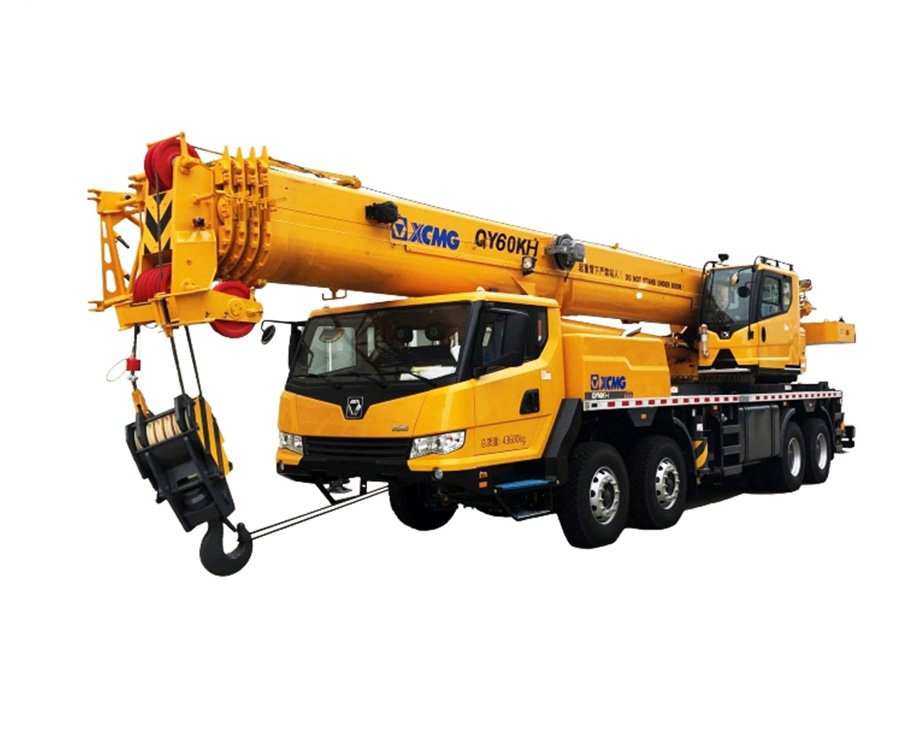

XCMG QY60KH Truck Crane

Product Description:

The XCMG QY60KH is a 60-ton truck crane designed for robust performance and versatility in various lifting operations.

Specifications

Dimension	Unit	QY60KH
Overall length	mm	13500
Overall width	mm	2800
Overall height	mm	3510
Weight
Total weight in travel	kg	41000
Power
Engine rated power	kW/(r/min)	276/2200
Travel
Max. travel speed	km/h	75
Min. turning diameter	m	24
Min. ground clearance	mm	291
Approach angle	°	17.5
Departure angle	°	12
Max. grade ability	%	40
Fuel consumption for 100km	L	45
Main performance
Max. rated total lifting capacity	t	60
Min. rated working radius	m	3
Turning radius at turntable tail	m	3.55
Max. lifting torque	kN.m	2060
Base boom	m	11.2
Fully extended boom	m	42
Fully extended boom+ jib	m	58
Longitudinal outrigger span	m	5.81
Lateral outrigger span	m	6.7
