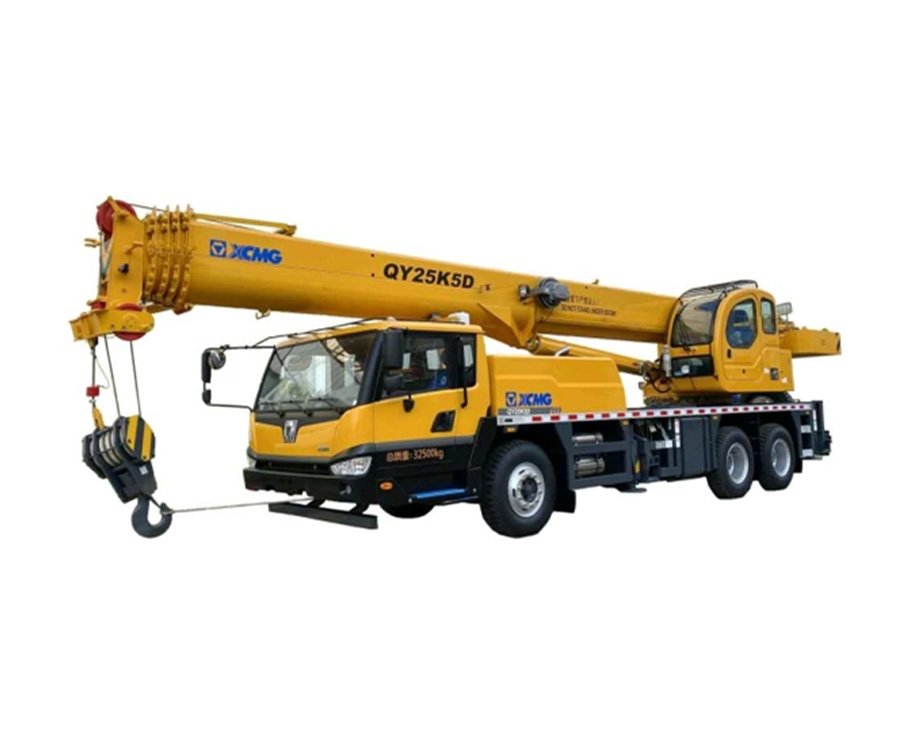

XCMG QY25K5D Truck Crane

Product Description:

The XCMG QY25K5D is a versatile and efficient 25-ton truck crane, suitable for a wide range of lifting applications. Its advanced telescoping system, powerful engine options, and operator-focused design make it a reliable choice in its class.

inquiry now add to cart

Specifications

Item	Unit	Parameter
Basic arm length	mm	10800
Chassis length	mm	10833
Outrigger span	mm	Vertical 5500 Horizontal 6400
Wheelbase	mm	4500/1350
Overall length	mm	13007
Overall width	mm	2550
Overall height	mm	3490
Approach angle	°	11
Departure angle	°	13.5
Curb weight	kg	33270
Engine rated power/speed	kw r/min	221/2200
Working range*Maximum rated lifting capacity	m*t	3*25
Maximum lifting moment of basic boom	kN·m	1148
Longest main boom	m	43
Main boom raising time	s	52
Main boom raising time	s	≤38
Full extension time of main boom	s	≤100
Main lifting speed (four layers without load)	m/min	≥135
Maximum rotation speed	r/min	≥2.5
Maximum driving speed	km/h	≥80
Maximum climbing ability	%	≥40

Inquiry Now

Product Name:XCMG QY25K5D Truck Crane
