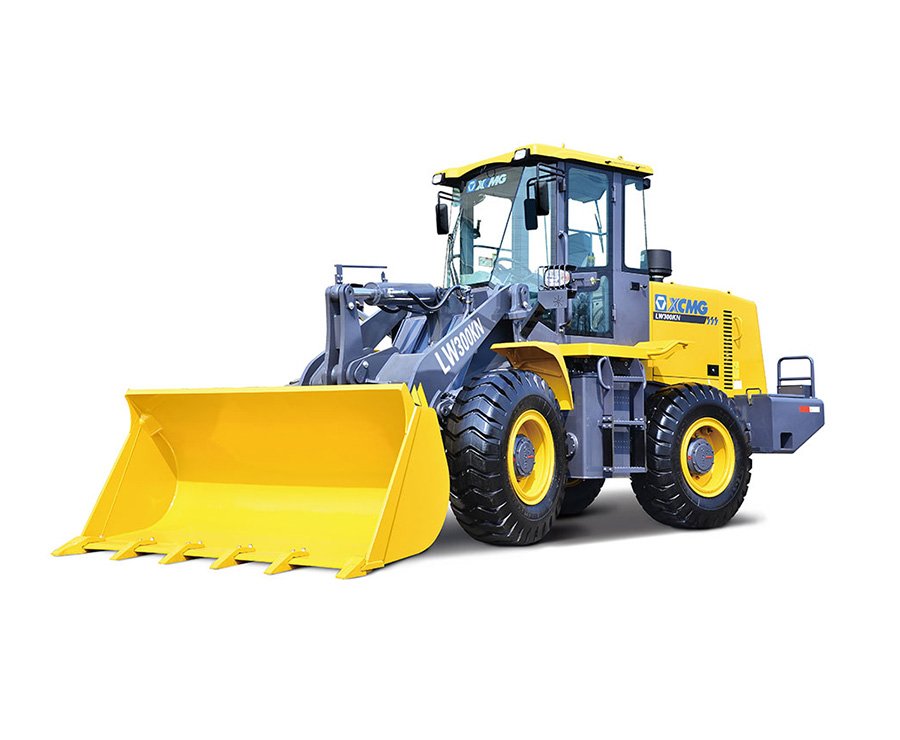

XCMG LW300KN Wheel Loader

Product Description:

XCMG LW300KN is a classic high-end loader from XCMG, which is famous for its superior performance and adaptability. With the features of maturity and reliability of the old model, LW300KN is improved all round, and leads in the same kind of product.

inquiry now add to cart

Specifications

Description	Unit	Parameter value
Rated operating load	kg	3000
Bucket capacity	m³	1.5~2.5
Machine weight	kg	10900±200
Dump clearance at maximum lift	mm	2770~3260
Reach at maximum lift	mm	1010~1210
Wheel base	mm	2900
Tread	mm	1850
Height of hinge at maximum lift height	mm	3830
Working height(fully lifted)	mm	4870
Max.breakout force	kN	130
Max.horse power	kN	95
Hydraulic cycle time-raise	s	5.4
Total hydraulic cycle time	s	9.3
Min. turning radius over tyres	mm	5170
Articulation angle	°	38±1
Gradeability	°	28
Overall machine dimension L×W×H	mm	7245×2482×3320
Rated Power/Speed	kW/rpm	92/2000
Fuel Tank	L	170
Hydraulic Tank	L	175
