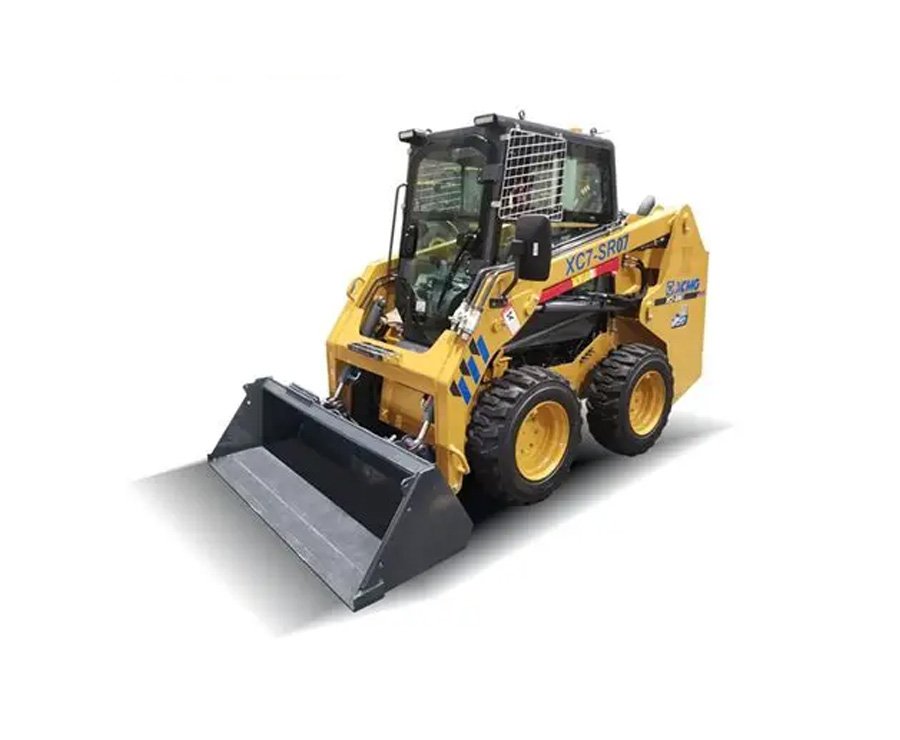

XCMG XC7-SR07 Skid-Steerloader

Product Description:

XCMG XC7-SR07 with strong power and rich attachments, the XCMG skid-steer loader can better adapt to the operations in narrow space and is an ideal tool for road construction, municipal maintenance, port handling, garden maintenance, and pasture production, featuring low operation cost and remarkable economic benefits.

inquiry now add to cart

Specifications

Parameters		Unit	XC740K
Rated load		kg	750
Tipping load		kg	1500
Operating weight		kg	3140
Maximum breakout force		kN	18
Engine	Manufacturer		Xinchai
	Model		4D27G31
	Rated power	Hp/kw	49.3/36.8
	Rated speed	rpm	2500
	Cooling mode		Water-cooling
Performance parameter	Operation mode		Mechanical & multi-function electronic control
	Tire standard		10-16.5
	Maximum speed	Km/h	14
Hydraulic system	Hydraulic flow rate	L/min	62.5
	Optional large flow		--
	Hydraulic pressure	bar	200
	Maximum operating height	mm	3878
	Bucket hinge pin height	mm	3057
	Cabin top height	mm	1960
	Maximum horizontal height of bucket bottom	mm	2851
	Length without bucket	mm	2533
	Length with bucket	mm	3310
	Toppling angle	°	40
	Maximum unloading height	mm	2375
	Ground-bucket angle	°	30
	Rotating angle of bucket at highest point	°	83
	Unloading distance	mm	575
	Wheel base	mm	1027
	Departure angle	°	25
	Ground clearance	mm	183
	Front radius of turning circle (without bucket )	mm	1183
	Front radius of turning circle (with bucket)	mm	2066
	Rear radius of turning circle	mm	1564
	Length of tail	mm	1005
	Wheel track	mm	1380
	Tire edge width	mm	1640
	Bucket edge width	mm	1800
	Bucket capacity (stacking height)	m3	0.45
	Bucket capacity (tiling)	m3	0.35
	Diesel tank capacity	L	80
	Capacity of hydraulic oil tank	L	60
