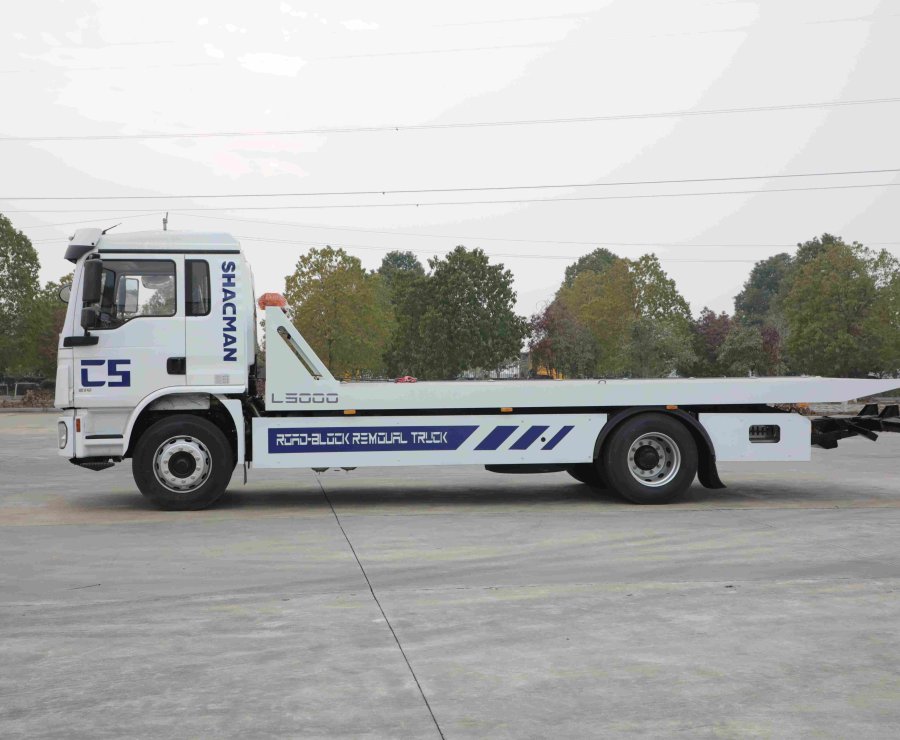

SHACMAN L3000 4×2 Tow Truck

Product Description:

Shacman Road wrecker is used for safety salvage of vehicles subject to city road, suburb way, highway, airport and bridge road. It is suitable for medium and small-sized cargos, cars and other special vehicles, which are allowed within the technical parameters of this kind.

share:

Specifications

Product name

Shacman L3000 4X2 Flatbed Towing Truck

Drive Model

4x2

Vehicle Main Dimensions

Dimensions(L x W x H)mm

9250X2500X2410

Wheel base (mm)

5000

Weight in KGS

Curb Weight

8990

GVW

12000

Max. driving speed (km/h)

90

Engine

Model

WP6.210E32

Type

4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling

Horse Power(HP)

210HP

Emission standard

Euro 2

Gearbox

5 forwards & 1 reverse

Fuel tank (L)

200L

Tire

10.00R20  6pcs + 1 spare tire

UPPER

flatbed

LXW(mm)

6750*2450

Max loading

10000kgs

Underlift

Max lifting capacity(kg)

10000kgs

Winch

Qty

1

Winch rating pulling capacity(kg)

10000

Length of steel(m)

45

Other Equipment

One tool box, one alarm lamp, two auxiliary wheels and 4 bandages
