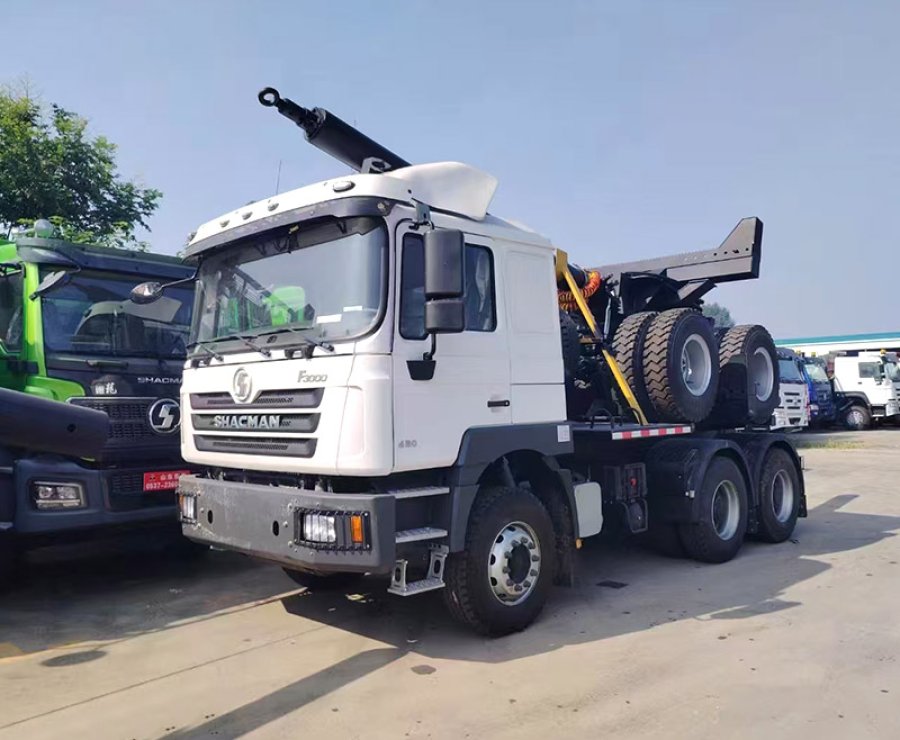

SHACMAN F3000 6×4 Log Truck

Dimension (L*W*H）(mm)

5800*2500*3450

Wheel base (mm)

3975 + 1400

Appro. / depar./ (°)

28 / 30

Engine

WP12.430E201 (WEICHAI , Euro 2)

Horsepower

420hp

Gearbox

10JSD200T FAST, 12 forward & 2 reverseNo force take-off device

Cab

F3000 flat roof cab with 1-sleeper & A/C

Axle

Front

9.5 Ton MAN tech.

Rear

2 * 16 Ton MAN tech. hub reduction axle speed ratio5.92

Tire

13.00R22.5 (18+1)

Fuel tank

400L aluminum tank

 Others

Add independent brake lever for trailer in cab、The electrical circuit interface of the full trailer is reserved at the end of the frame、Desert air filter with upper air inlet、protector for lamps/Reinforced steel plate bumper, reinforced towing hook.

Payment terms

T/T，30% deposit, balance before delivery

Production time

35 working-days after deposit

Log transport bodywork configuration

9.66m long, 3.35m wide, 3.17m high, Fuhua 32T level single-point suspension, Fuhua axle 16T level. The diameter of the gun barrel is 15mm, the wall thickness is 15mm, the longitudinal beam of the gun carriage subframe is thickened, and the cross beam is bent with 10mm steel plate. The gun truck Single rotation single turntable, Zhengxing 9.0 steel rims, 8 pcs each of 13R22.5 tires. The gun carriage drawbar is 9660, the outer diameter is 195*15mm, the clearance hole sleeve diameter is 50, the drawbar head should be added with an inner diameter of 50, and the drawbar pin hole should be changed It is oval in shape, the thickness of the sawtooth post of the L frame is 30mm, and it is made of a sawtooth plate with a width of 250. The movable end of the L frame is fixed, a triangular ladder with a height of 320 and a total width of 3150. The square tube of the gun carriage is 150*150* 15. The main vehicle protective fence is made of 108 diameter seamless pipes and is equipped with a water tank protection cabinet. The gun carriage is equipped with a water tank. The entire vehicle is sandblasted and waxed.
