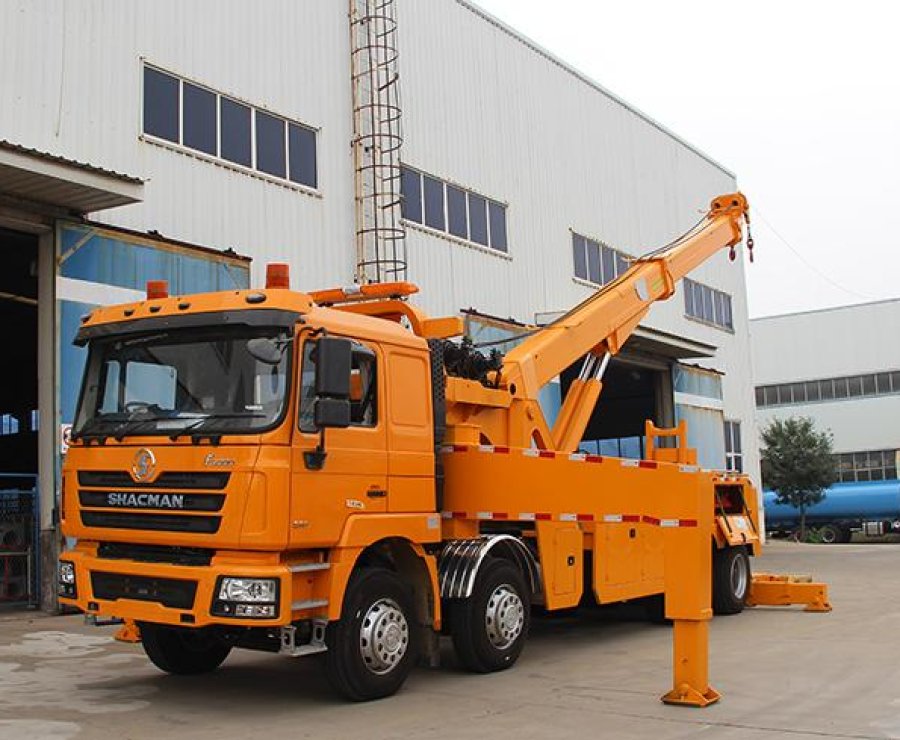

SHACMAN F3000 8×4 Road Wrecker Truck

Product Description:

Shacman F3000 8*4 wrecker towing truck is equiped with 30tons lifting capacity and 2*15tons winches, with both manual and remote control switch.

Specifications

Cabin	Driving type 8x4, right hand driven
	Two seats, with A/C and one sleeper, 70°hydraulically tillable to the front.
Vehicle Main Dimensions	Overall dimensions (L x W x H)mm		12000×2500×3600
	Wheel base (mm)		1800+4600+1350
	Wheel track (front/rear) (mm)		2022/1830
Weight in KGS	Tare Weight(KGS)		24000
	Front axles loading capacity(KGS)		2x7500
	Rear axles loading capacity(KGS)		2x16000
Max. driving speed(km/h)	75
Engine	Brand		CUMMINS
	Model		ISME385-30
	Type		4-stroke direct injection,6-cylinder in-line with water cooling, turbo-charging and inter-cooling
	Horse Power(HP)		385HP
	Emission standard		EuroⅢ
Gearbox	12JSD180T, 12 speed forward and 2 reverse gear
Clutch	Reinforced diaphragm clutch, diameter 430mm
Steering	Integral circulation ball power steering
Oil tank	400 liters
Tire	12.00R20 tires, 12 pieces with one spare
Special Device For Wrecker System
Hoisting Organ		Rated under-pulling capacity	60000
		Max Under-hoisting Capacity (kg)	30000
		Max Under-hoist length (mm)	3000
		Under hoisting work angle	-10~85°
Lifting Organ		Max lifting capacity(kg)	60000
		Max lifting high(mm)	11680
		Telescope length(mm)	6000
		Winch	3000kgs×2
		Steel rope	50M,Φ30
		Crane luffing angle	5°~ 60°
		Crane rotation angle	360°All Rotation
		Distance between front legs(mm)	7000
Landing Leg		Distance between rear legs(mm)	4000
