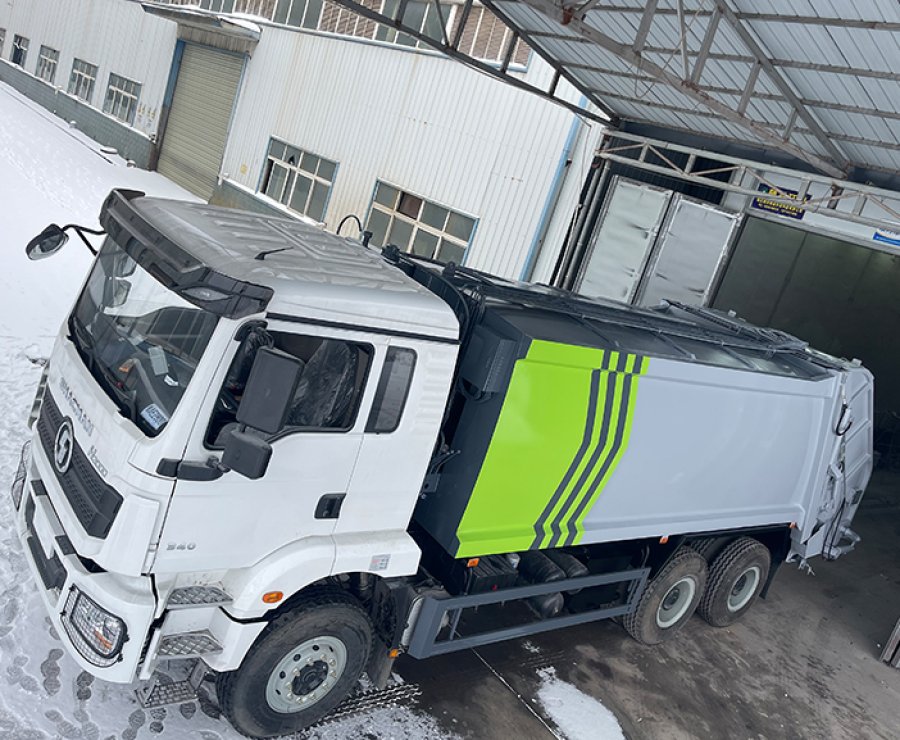

SHACMAN H3000 6×4 Garbage Truck

Product Description:

Shacman H3000 garbage compressor kind of vehicle specially used for garbage compression and transportation, which consists of a sealed garbage compartment, a hydraulic system and an operating system. The design of this vehicle is mainly to solve the problem of secondary pollution in the process of garbage transportation, through the fully sealed design, the garbage compressor can compress and dump the garbage by itself, while ensuring that the sewage generated during the compression process all enters the sewage compartment, thus effectively reducing the pollution in the garbage transportation process and avoiding the inconvenience to people. The key parts of the garbage compressor are imported parts, which have the advantages of high pressure, good sealing, easy operation and safety. In addition, the garbage compressor can also be selected with a rear-hanging bucket flipping mechanism or a garbage bucket flipping mechanism to adapt to different use scenarios.

inquiry now add to cart

Specifications

Truck Model		SX3255DR384
Max. running speed (km/h)		80
Drive System		4×2
Dimensions		838524903450
(LWH)(mm)
Wheel base (mm)		4375
Engine		ISME345 30 ( Cummins engine, Euro 3 )
Rated power		345 hp
Gearbox		10JSD180 (Fast gear)
Clutch		430 Diaphragm type
Steering		ZF technology
Cab		SHACMAN H3000 flat roof Cabin with A/C & sleeper
Axle	Front	7.5 Ton MAN with Drum brake
	Rear	13 Ton MAN axle,Double reduction 4.769
Tyre		12.00R20
Pressure of hydraulic system		20MPa
Body volume		12m3
Body material		Q345A
Body control		electric and manual control
Compaction ratio		6:01
Manipulator		double square type garbage bucket
Filler volume		2.0m3
Cycle time of filling		≤25 seconds
Lifting time of filler		8-10 seconds
Time of discharging		≤40 seconds
Front/rear sewage tank volume		250+150L
Max compression force		>25,000kg
