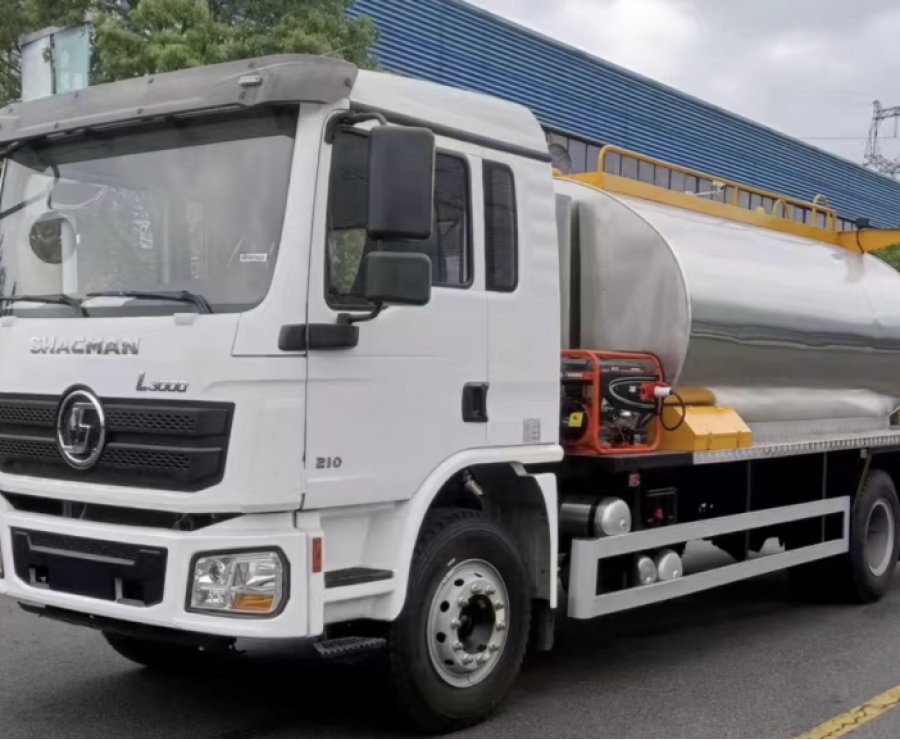

SHACMAN L3000 4×2 Asphalt Distribution Truck

Product Description:

1. Out-cover of tank is stainless steel

2.Asphalt water sprinkling is of multi-purpose

3.Flexibility in usage with variety specifically high-temperature asphalt, emulsified asphalt and modified asphalt.

4.Two sets of pipeline cleaning system and doesn't require external cleaning methods.

5.Our asphalt distributor has a tremendous heating system and is equipped with rear lighting system.

Specifications

Model	CLW5180GLQSX06
Chassis brand	Shacman
Drive type	4x2
Overall Dimension	8500x2500x3650 mm
Gross weight(kg)	18000
Curb weight (kg)	9500
Load weight (kg)	8500
Wheelbase	4500 mm
Engine Power	Weichai 210HP Euro 2
Transmission	Manual, 6-speed
Brake	Air brake
Axle load (front/rear)	4.8 tons / 110 tons
Tire	6+1 pcs, 10.00R20 radial tires
Max speed	90km/h
Upper Structure Parameter
Asphalt tank volume	6000 liters
Insulation material thickness	50 mm
Outer cover stainless steel thickness	1 mm
Hydraulic pump	CBQ550-L
Proportional valve	EFRD-G03-160
Asphalt pump	QGB680
Spray nozzle no.	34 pcs intelligent nozzles (one control one)
Hand-held spray gun	5 meter long with steel hose
Burner	Italy imported G20 (100000 kal/hour)
Heat transfer oil pump moto	380V-2.2KW-2 poles
Control system	Cab touch screen computer + rear working platform control
Speed sensor	Ni5-G12
Temperature Controller	WZP-230
Generator	6Kw petrol generator

Inquiry Now

Product Name:SHACMAN L3000 4×2 Asphalt Distribution Truck
