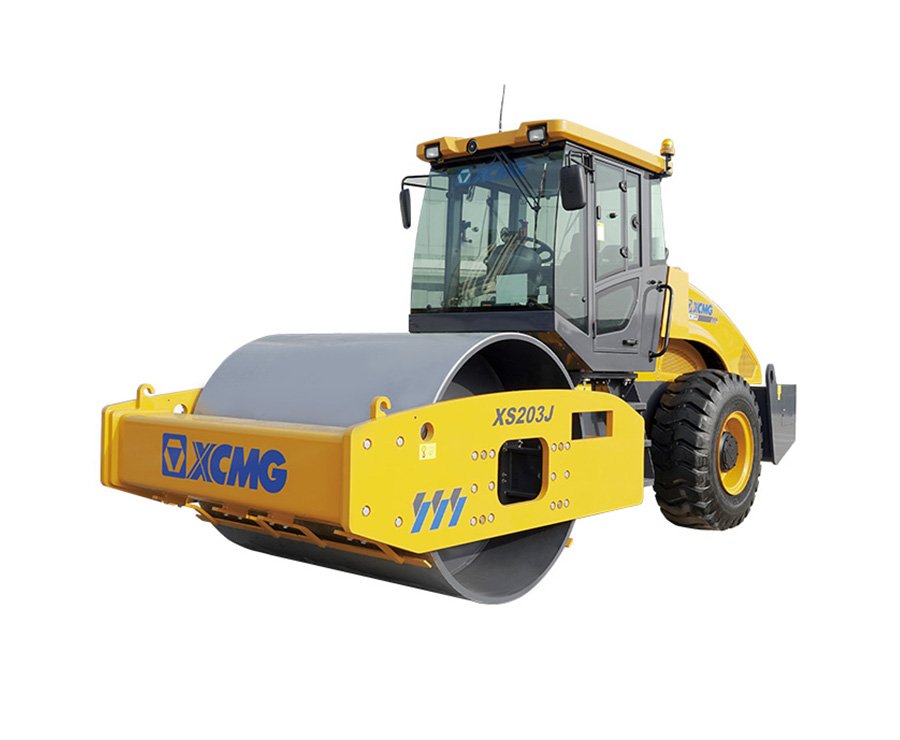

XCMG XS203J Single Drum Vibratory Roller

Product Description:

XS203J is suitable to the compaction operation ofpebbles,sandy soils,moraine soil,blasting rockand clayey soil,as well as the compaction of con-crete and stabilized soil base materials in variouslarge projects.It is the ideal compaction equipmentfor the construction of high-grade highways,air-ports,harbors,dams and industrial constructionsites.

share:

Specifications

Model

Unit

XS203J

Operating weight

kg

20000

Load applied on front drum

kg

10000

Static linear pressure

N/cm

470

Speed range

km/h


Gear I


2.95

Gear II


5.78

Gear III


9.4

Theoretical gradeability

%

30

Min. external turning radius

mm

6500

Steering angle

°

±30

Oscillating angle

°

±11

Vibration frequency

Hz

33/28

Nominal amplitude (high/low)

mm

1.9/0.95

Exciting force (high/low amplitude)

kN

353/245

Drum width

mm

2130

Drum Diemeter

mm

1600

Engine model


Diesel Engine SC8D175.2G2B1

Max. power

kW

128@1800r/min

Engine oil consumption

g/kW.h

205

Hydraulic oil tank capacity

L

170

Fuel tank capacity

L

310
