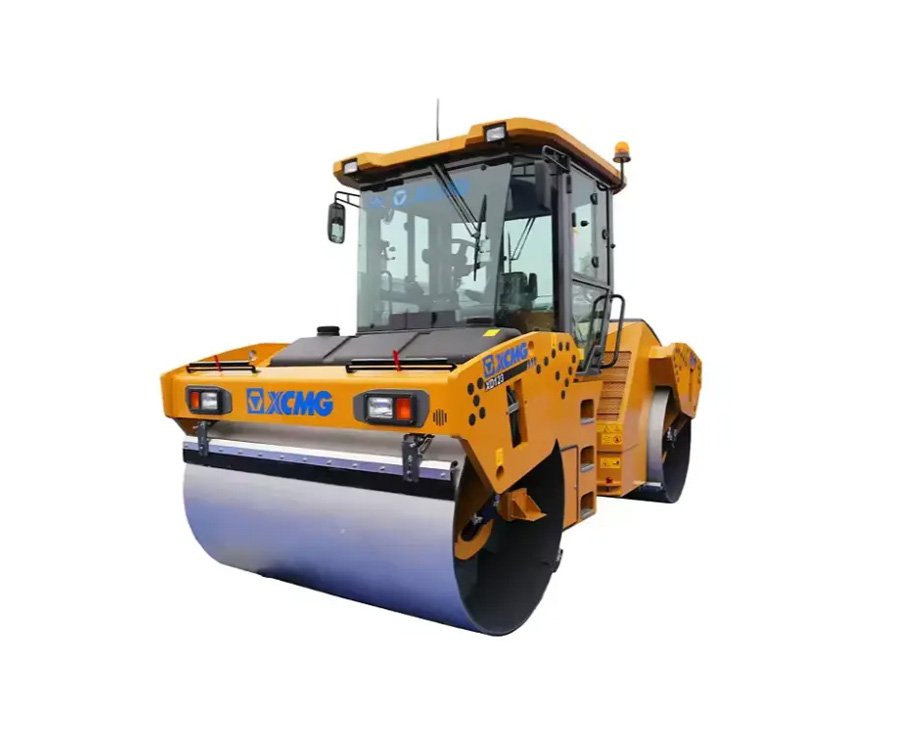

XCMG XD123 Vibratory Roller

Product Description:

XD123 Vibratory roller is a type of asphalt compaction machinery product which is independently researched and developed by XCMG Road Machinery Business Unit based on decades of experience in compaction machinery research and development. It is designed for the compaction of asphalt pavement, asphalt layer of different materials and different thickness, especially suitable for roads, parking lots, airports and other large engineering projects, can also be used for compaction of roadbed and sub-base material, wide application scope.

inquiry now add to cart

Specifications

Item		Unit	XD123
Weight distribution	Working weight	kg	12300
	Front wheel distribution weight		6150
	Rear wheel distribution weight		6150
Maneuverability	Speed range	km/h	Gear I 0-6 / Gear II 0-12
	Theoretical gradeability	%	35
	Minimum turning radius (in/out)	mm	4800/6930
	Largest amount of crab	mm	±160
	Swing angle	°	±8
	Steering angle	°	±35
Compaction performance	Static linear load	N/cm	283/283
	Nominal amplitude	mm	0.3/0.75
	Vibration frequency	Hz	55/45
	Exciting force (high frequency/low frequency)	kN	85/140
Engine	Rated power	kw	119
Engine	Rated speed	r/min	2200
