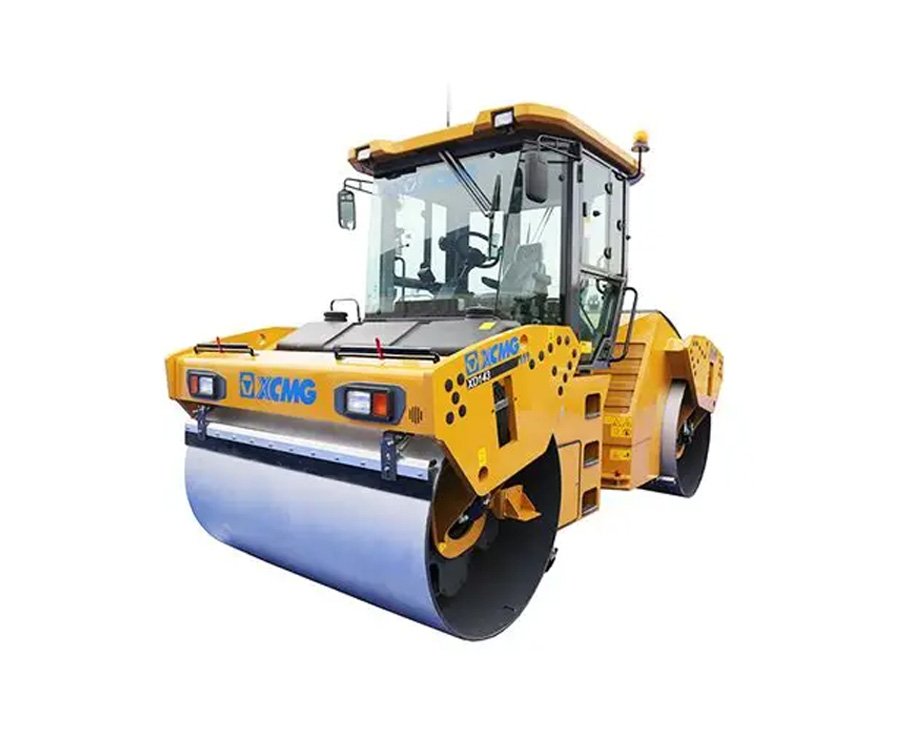

XCMG XD143 Vibratory Roller
XCMG XD143 Vibratory Roller
Product Description:
XD143 vibratory roller is designed for the compaction of asphalt pavement, asphalt layer of different materials and different thickness, especially suitable for roads, parking lots, airports and other large engineering projects, can also be used for compaction of road bedand sub-base material, wide application scope.
Specifications
Item | Unit | XD143 |
Operating weight | kg | 14000 |
Load applied on front drum | kg | 7000 |
Load applied on rear drum | kg | 7000 |
Speed range | Km/h | Gear l 0-6 |
Thecretical Gradeability | % | 35 |
Min. turning radius(Inner/Outer) | mm | 4670/6800 |
Max.crab-walking distance | mm | ±160 |
Swing angle | ° | ±8 |
Turning angle | ° | ±35 |
Static linear load | N/cm | 330/330 |
Nominal amplitude | mm | 0.30/0./80 |
Vibration frequency | Hz | 50/67 |
Exiting force(H/F) | kN | 110/170 |
