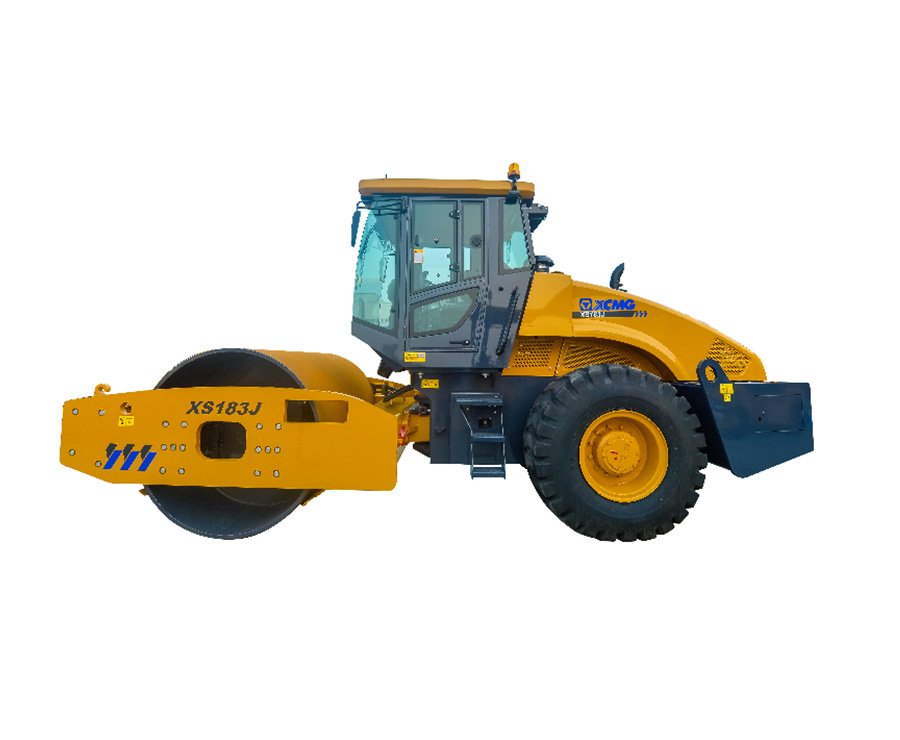

XCMG XS183J Single Drum Vibratory Roller

Product Description:

XS183J has a very high static line load and exciting force and is suitable to the compaction operation of pebbles, sandy soils, moraine soil, blasting rock and clayey soil, etc, and it is also suitable to the compaction of concrete and stabilized soil base materials in various large projects, with the maximum working depth up to 1.0m and above. Thus, it is a kind of important compaction equipment in the construction of large projects such as the expressway, railway, port, etc.

inquiry now add to cart

Specifications

Model	Unit	XS183J
Operating weight	kg	18000
Load applied on front drum	kg	9000
Static linear pressure	N/cm	422
Speed range	km/h	F/R
Gear I		2.52
Gear II		4.98
Gear III		11.17
Theoretical gradeability	%	30
Min. external turning radius	mm	6500
Steering angle	°	±33
Oscillating angle	°	±11
Vibration frequency	Hz	28
Nominal amplitude (high/low)	mm	1.9/0.95
Excitation force (high/low amplitude)	kN	290/145
Engine model		Shaihai Diesel Engine SC8D156.2G2B1
Type		/
Max. power	kW	115
Hydraulic oil tank capacity	L	170
Fuel tank capacity	L	310
