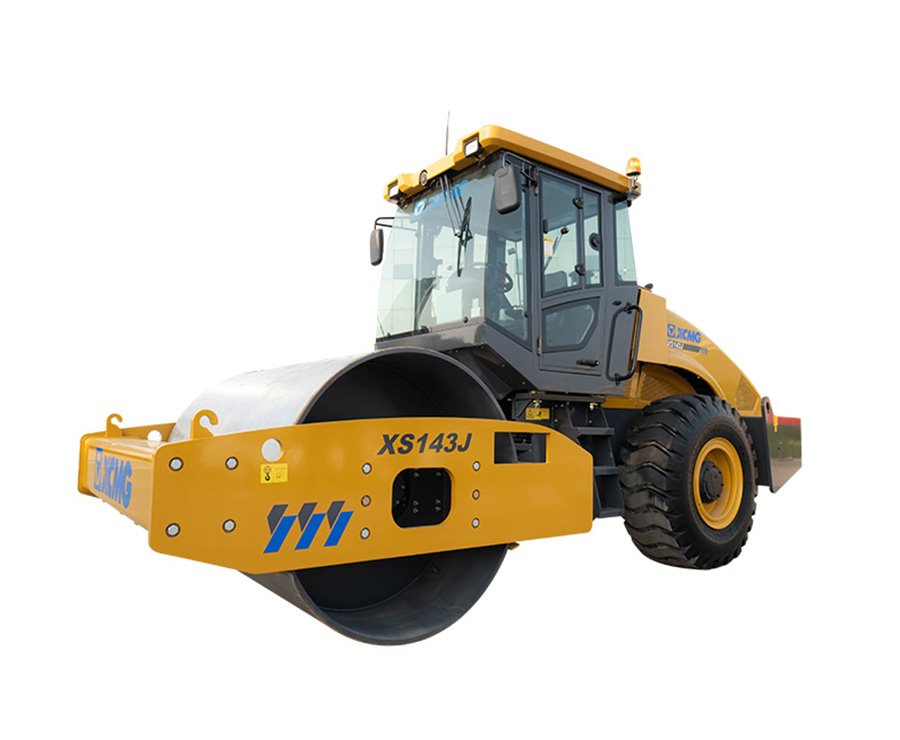

XCMG XS143J Single Drum Vibratory Roller

Product Description:

XS143J has a very high static line load and exciting force and is suitable to the compaction operation of pebbles, sandy soils, moraine soil, blasting rock and clayey soil, etc, and it is also suitable to the compaction of concrete and stabilized soil base materials in various large projects, with the maximum working depth up to 1.0m and above. Thus, it is a kind of important compaction equipment in the construction of large projects such as the expressway, railway, port, etc.

inquiry now add to cart

Specifications

ltem			Unit	XS143J
Service mass			kg	14000
Distributed mass of driving wheel			kg	7300
Distributed mass of vibration wheel			kg	6700
Static line load			N/cm	315
Vibration frequency			Hz	28/33
Theoretical amplitude			mm	1.9/0.95
Exciting force			kN	274/190
Range of speed	Forward	I	km/h	2.85
		II	km/h	5.08
		III	km/h	11.17
	Backward	I	km/h	2.88
		II	km/h	5.02
Wheel base			mm	3040
Compaction width			mm	2130
Theoretical gradeability			%	30
Minimum turn radius			mm	6800
Diameter of vibration wheel			mm	1523
Minimum ground clearance			mm	431
Engine	Model			SC4H140.1G2
	Rated speed		r/min	1800
	Rated power		kW	103
Overall dimension (length x width x height)			mm	615023003200
