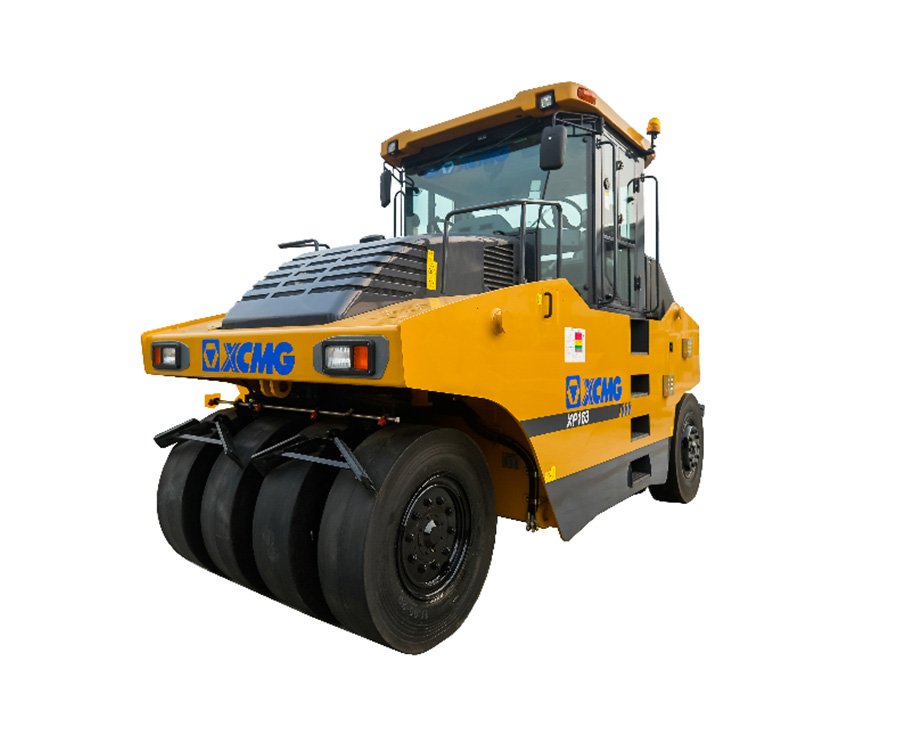

XCMG XP163 Pneumatic Tire Roller

Product Description:

XP163 pneumatic tire roller is an indispensable equipment for the construction of high grade highway, large-scale foundation rolling and all kinds of filling and compaction.Its unique kneading and compaction performance makesit irreplaceable by other machine models. XP163 is a self-propelled static roller, with efficient compaction abili-ty and excellent compaction performance, applies tocompaction asphalt pavement, base layer, subbase layerand filling. It is widely used in compaction operations for all kinds of traffic roads, airports, ports, dams and other large engineering, especially for high grade highway pavement.

inquiry now add to cart

Specifications

Item		Unit	XP163
Maximum operating mass		kg	16000
Ground pressure		kPa	150~ 300
Travel speed	Gear I	km/h	4
	Gear II	km/h	8.3
	Gear II	km/h	17.5
Theoretical gradeability		%	20
Minimum turning radius		mm	7330
Minimum ground clearance		mm	260
Compaction width		mm	2250
Overlapped volume of roller		mm	45
Tires	Specification		11.00-20
Tires	Quantity		Front 4 rear 5
Engine	Type		SC4H115.4G2B
	Rated power	kw	86
	Fuel consumption	g/kw.h	≤205
Total length		mm	4800
Total width		mm	2356
Total height		mm	3330
Diesel tank volume		L	150
Water tank volume		L	650
