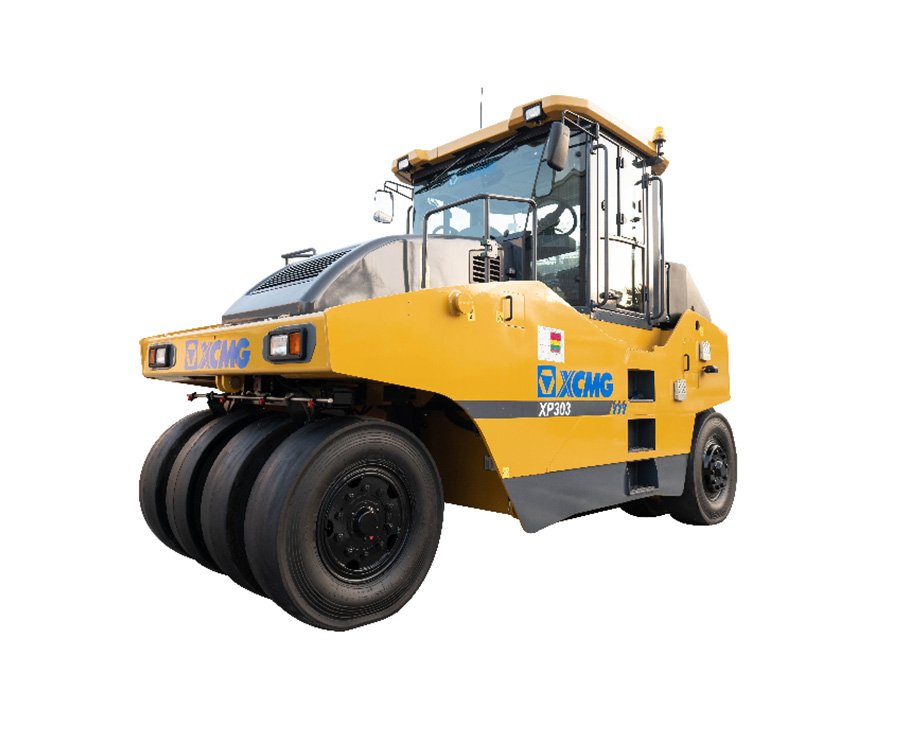

XCMG XP303 Pneumatic Tire Roller

Product Description:

XP303 pneumatic roller is a large-tonnage tyre roller produced according to market requirements, which will take pneumatic tyres as working device for compacting paved materials. The tyre roller is mainly applicable for compacting operation of asphalt pavement, foundation layer, secondary foundation layer, dam and filling engineering. It is an ideal set of compacting equipment for building high grade highway, airport, port, dam and industrial construction site.’

inquiry now add to cart

Specifications

Item		Unit	XP303
Maximum operating mass		kg	30300
Compaction width		mm	2360
Overlapping of tyres		mm	65
Ground pressure		kPa	200-545
Minimum turning radius		mm	7620
Swing quantity of front wheel		mm	50
Minimum ground clearance		mm	300
Theoretical gradeability		%	20
Wheel base		mm	3840
Travel speed	Gear I	km/h	0-8
Travel speed	Gear II	km/h	0-17
Engine	Type	-	SC7H180.2G3
	Rated power	kw	132
	Rated speed	r/min	1800
	Rated fuel consumption rate	g/kw.h	≤233
Tyre specification		-	13/80-20
Tyre tread pattern		-	Smooth tread
Number of tyres		-	Front4 rear 5
Length(standard water sprinkler)		mm	4925
Length(standard oil sprinkler)		mm	5015
Width		mm	2530
Height		mm	3470
Diesel tank volume		L	170
Water tank volume		L	650
