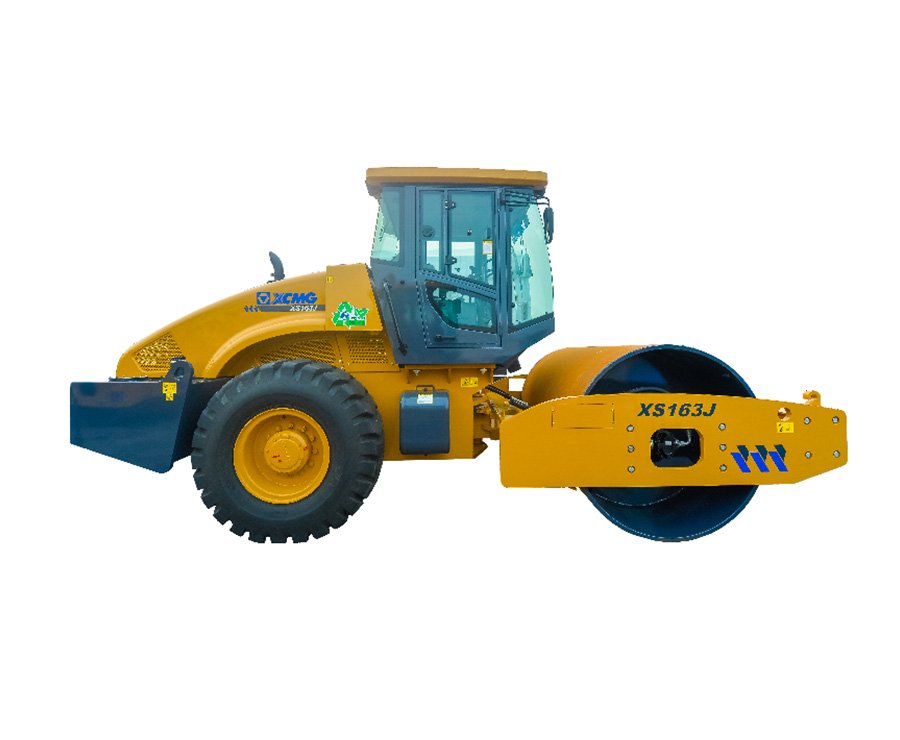

XCMG XS163J Single Drum Vibratory Roller

Product Description:

XS163J has a very high static line load and exciting force and is suitable to the compaction operation of pebbles, sandy soils, moraine soil, blasting rock and clayey soil, etc, and it is also suitable to the compaction of concrete and stabilized soil base materials in various large projects, with the maximum working depth up to 1.0m and above. Thus, it is a kind of important compaction equipment in the construction of large projects such as the expressway, railway, port, etc.

inquiry now add to cart

Specifications

Model	Unit	XS163J
Operating weight	kg	16000
Load applied on front drum	kg	7700
Static linear pressure	N/cm	362
Speed range	km/h	F/R
Gear I	km/h	2.88
Gear II	km/h	5.02
Gear III	km/h	11.17
Theoretical gradeability	%	30
Min. external turning radius	mm	6500
Steering angle	°	±30
Oscillating angle	°	±11
Vibration frequency	Hz	28
Nominal amplitude (high/low)	mm	1.9/0.95
Exiting force (high/low amplitude)	kN	290/145
Engine model		Shaihai Diesel Engine SC4H140.192
Type		/
Max. power	kW	103
Hydraulic oil tank capacity	L	170
Fuel tank capacity	L	310
