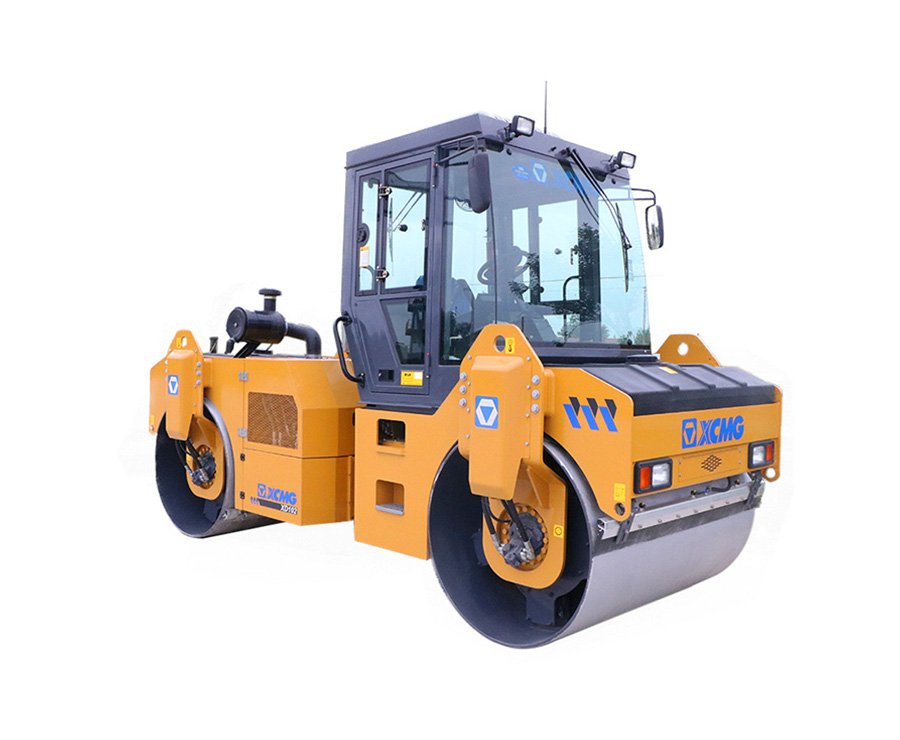

XCMG XD103 Vibratory Roller

Product Description:

XD103 Vibratory roller is asphalt compaction machinery product which is independent researched and developed by XCMG road machinery business division based on years of experience in compaction machinery research and development. This product is designed for municipal administration maintenance and construction projects customers, is especially suitable for compacting asphalt concrete pavement, can also be used for compacting small and medium base, sub-base and filling materials, the whole machine structure is compact and flexible, is an ideal compaction equipment for construction of municipal maintenance and custody of highway asphalt surface course.

inquiry now add to cart

Specifications

Parameter		Unit	XD103
Weight distribution	Working weight	kg	10000
	Front wheel distribution weight (kg)		5000
	Rear wheel distribution weight (kg)		5000
Compaction performance	Static linear load	N/cm	280/280
	Nominal amplitude	mm	0.35/0.6
	Vibration frequency	Hz	58/48
	Exciting force (high frequency/low frequency)	kN	90/110
	Vibration wheel size	mm	1150*1750
Maneuverability	Speed range	km/h	0~6/0~12
	Theoretical gradeability	%	35
	Minimum turning radius (in/out)	mm	4070/5820
	Swing angle	°	±10
	Steering angle	°	±38
Engine	Rated power	kW	74.9
Engine	Rated speed	r/min	2300
